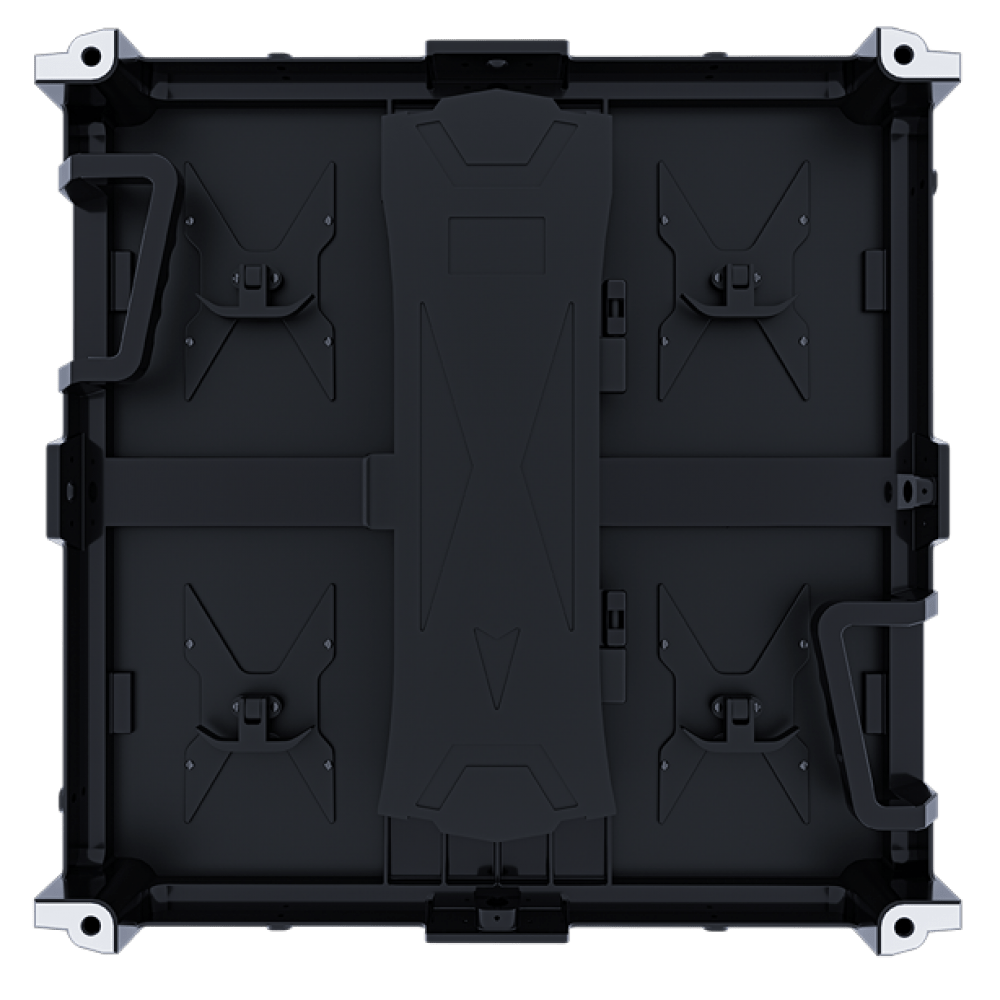

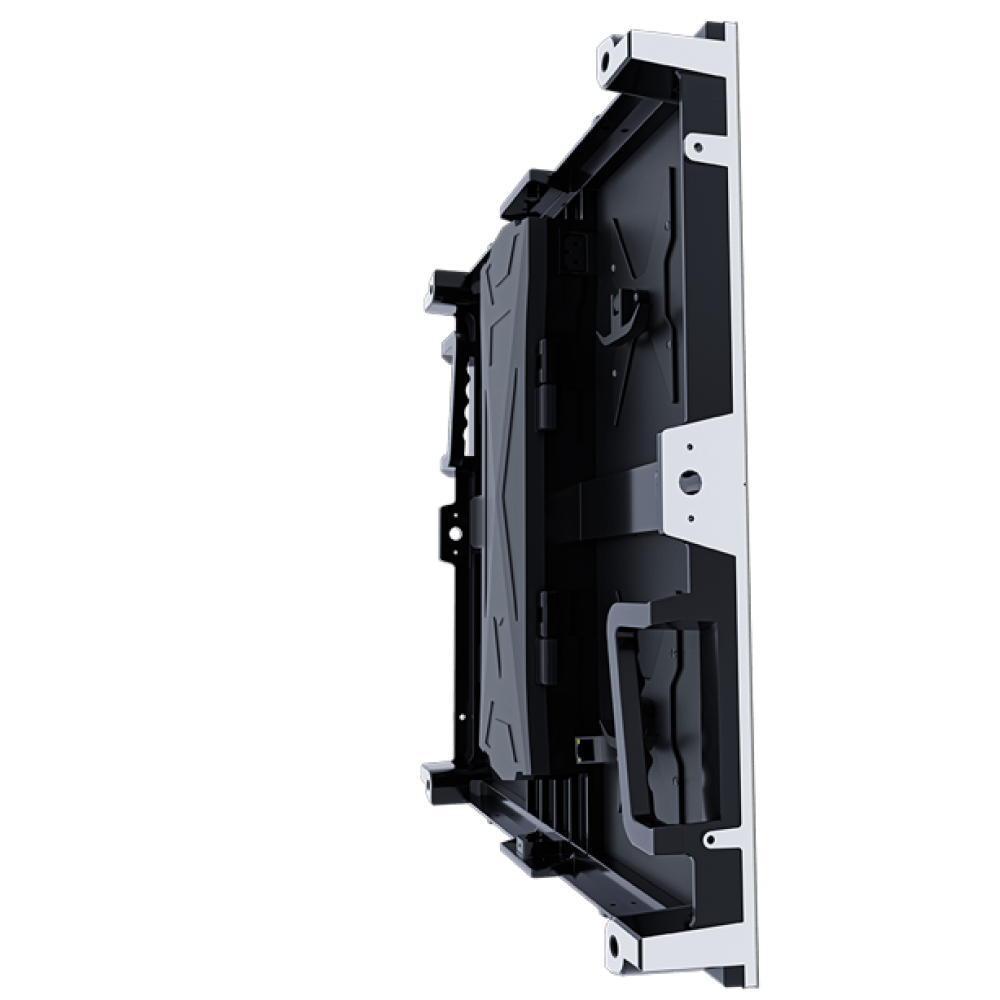

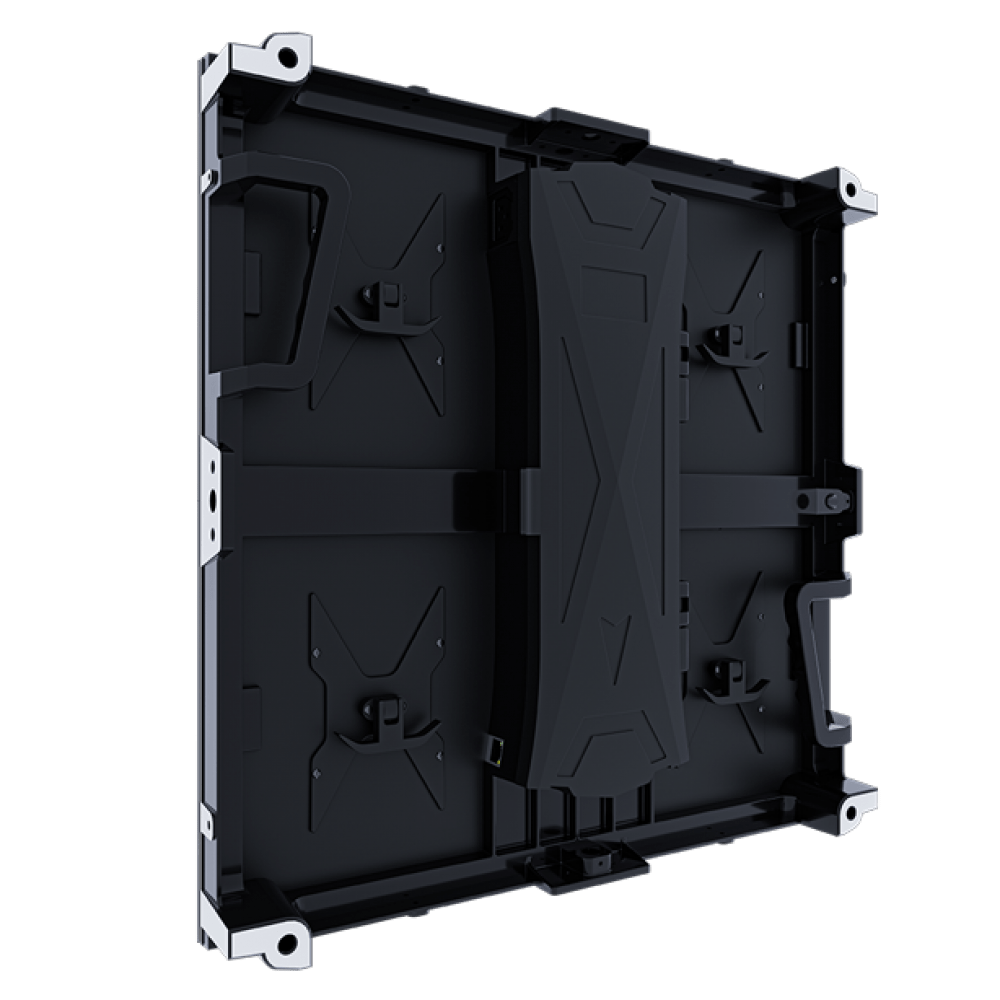

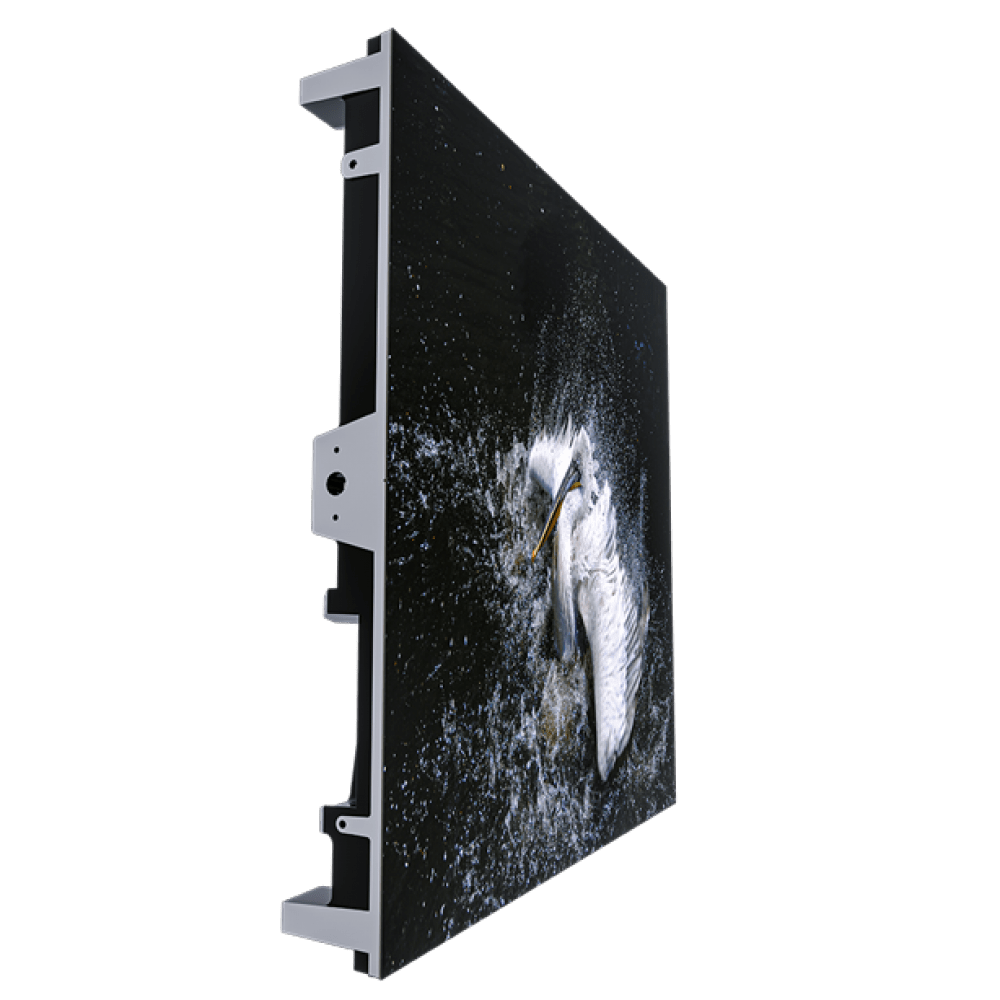

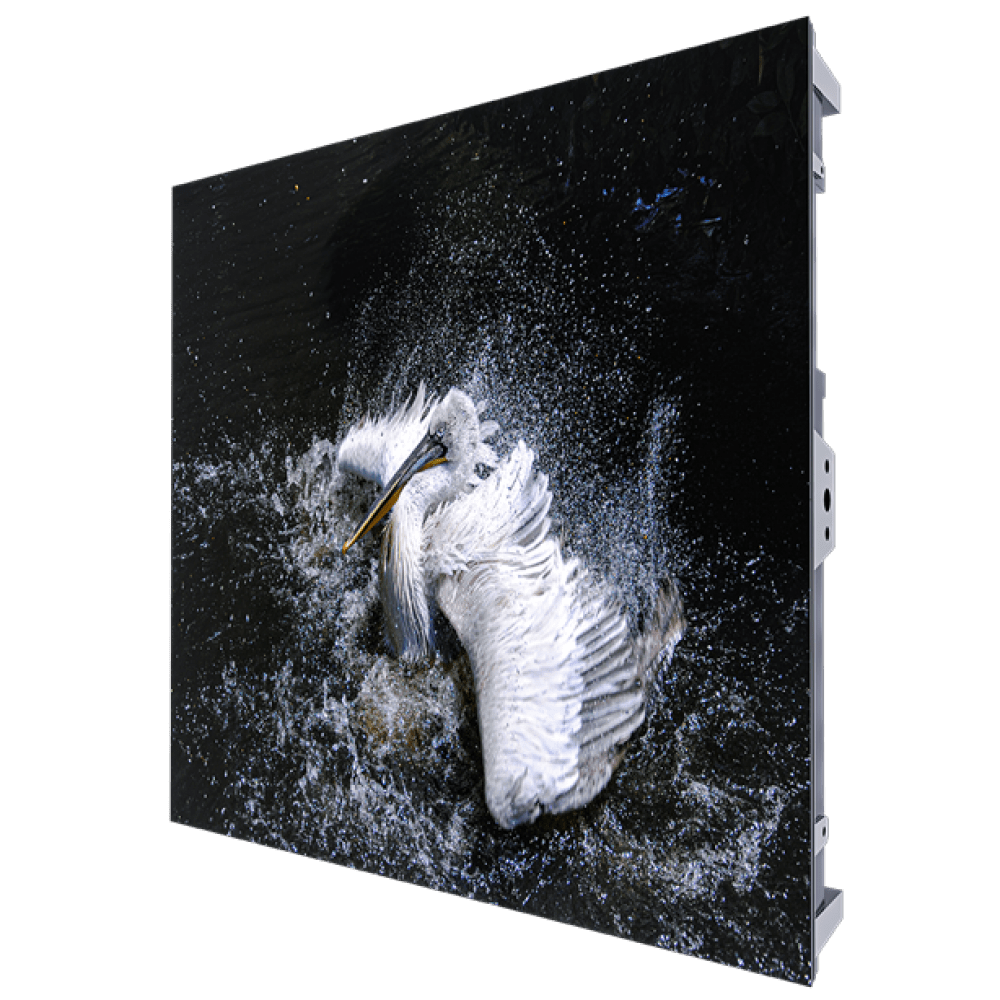

C series-M1 LED screen has the characteristics of a seamless, perfect display, long lifetime, fast frame changing speed, high refresh, good uniformity, wide viewing angle, high grayscale, natural color reproduction etc. It is widely used in command and dispatch center, security monitoring, video conference, studio display, various indoor conference room display area.
Extremely short response time No image tailing or ghosting in nanometre.
High dynamic range image HDR. Provide more dynamic range and image details, Compared with ordinary image.
Easy to maintenance every module for LED screen.
You can see the whole scene from any angle.
Seamlessly spliced module, complete and clear picture, fast signal transmission.
As for conference room solution, LED display technology must deliver superior visual performance and clarity to enable efficient meeting.
With rapidly rising competition among offline retail industries, there’s never been a better time to think divergently to make your company stand out from the crowd by advertising. To help you convey an ultra-targeted brand message to a far broader public audience in a unique way.
As for the studio solution, our premium products bring your broadcasting stories to life by conveying vivid and dynamic visual performance to the audience.
| Module | C1.53 | C1.86 |
| LED encapsulation | SMD1212 black light | SMD1515 black light |
| Pixel pitch | 1.53mm | 1.86mm |
| Resolution | 422500 pixels/m² | 288906 pixels/m² |
| Lamp bead/IC | Domestic high-quality copper wire/high refresh rate | |
| Pixel configuration | 1R1G1B | |
| Module resolution | 208*104 | 172*86 |
| Module size (mm) | 320*160 | 320*160 |
| Module weight | ≤0.48Kg/pc | |
| Working voltage | DC+4.2V~+5V | |
| Main parameters | ||
| Best viewing distance | ≥4.6m | ≥5.5m |
| Horizontal viewing angle | ≥175° | |
| Vertical viewing angle | ≥175° | |
| Maintenance method | Front/rear maintenance | |
| Control mode | Synchronous control | |
| Drive device | Constant current | |
| Refresh rate | ≥4200Hz | |
| Frame rate | ≥60Hz | |
| Scanning method | 52S | 58S |
| Brightness | 200-800CD/m² | |
| Grayscale | 12/14/16/18bit | |
| Contrast | ≥10000:1 | |
| Attenuation rate (after working for 3 years) | ≤15% | |
| Brightness adjustment method | Auto/manual: 0-100% | |
| MTBF | ≥20000H | |
| Lifespan | ≥100000H | |
| Failed rate | ≤1/100000 and no continuous failed pixels | |
| Storage temperature | -35℃~+85℃ | |
| Working temperature | -20℃~+60℃ | |
| Working voltage (AC) | 220V±10%/50Hz/60Hz | |
| Average power consumption | ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²) | |
| Maximum power consumption | ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²) | |
| Installation method | Magnetic installation | |
| Brightness uniformity | ≥99% | |
| Protection class | IP5X | |
