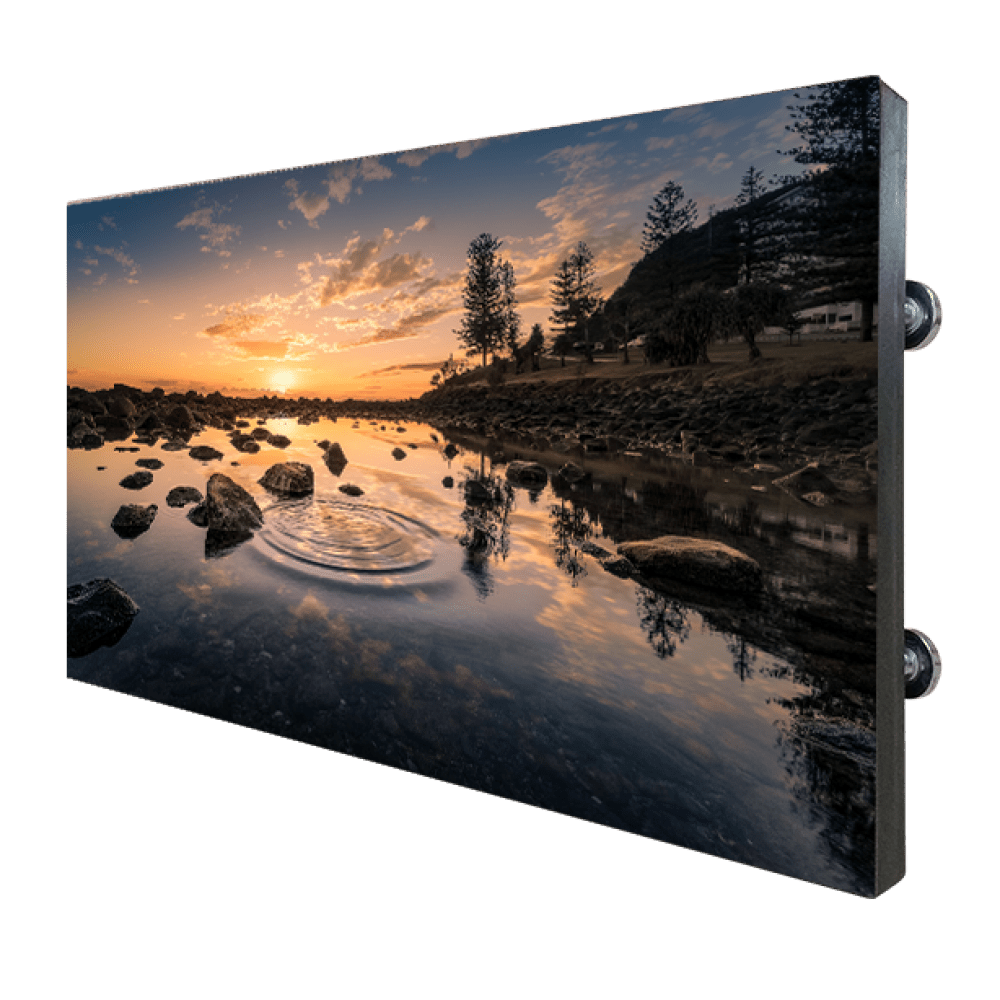

C series-4：3 has seamless, perfect display characteristics, long lifetime, fast frame changing speed, high refresh, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch center, security monitoring, video conference, exhibition, large stage, convention and exhibition center, indoor stadium, various indoor conference room display area.
Extremely short response time No image tailing or ghosting in nanometre.
High dynamic range image HDR. Provide more dynamic range and image details, Compared with ordinary image.
Easy to maintenance every module for LED screen.
You can see the whole scene from any angle.
As for conference room solution, LED display technology must deliver superior visual performance and clarity to enable efficient meeting.
With rapidly rising competition among offline retail industries, there’s never been a better time to think divergently to make your company stand out from the crowd by advertising. To help you convey an ultra-targeted brand message to a far broader public audience in a unique way.
As for the studio solution, our premium products bring your broadcasting stories to life by conveying vivid and dynamic visual performance to the audience.
| Model | C2.0 | C2.5 | C3.0 |
| LED encapsulation | SMD1515 black light | SMD2121 black light | SMD2121 black light |
| Pixel pitch | 2.0mm | 2.5mm | 3.076mm |
| Resolution | 250000 pixels/㎡ | 160000 pixels/m² | 105625 pixel/㎡ |
| Lamp bead/IC | Domestic high-quality copper wire/high refresh rate | ||
| Pixel configuration | 1R1G1B | ||
| Module resolution | 160*80 | 128*64 | 104*52 |
| Module size (mm) | 320*160 | 320*160 | 320*160 |
| Cabinet resolution | 320*240 | 256*192 | 208*156 |
| Cabinet size (mm) | 640*480 | 640*480 | 640*480 |
| Cabinet weight | ≤5.7Kg/piece | ||
| Power voltage | DC+4.2V~+5V | ||
| Main parameter | |||
| Best viewing distance | ≥6m | ≥7.5m | ≥9.0m |
| Horizontal viewing angle | ≥175° | ||
| Vertical viewing angle | ≥175° | ||
| Maintenance method | Front maintenance | ||
| Graphics card | DVI/HDMI/DP | ||
| Video signal | Compatible with PAL/NTSC/SECAM format, support S-Video; VGA; RGB; CompositeVideo; SDI; DVI; RF; RGBHV; YUV; YC, etc. | ||
| Control mode | Synchronous control | ||
| Drive device | Constant current | ||
| Refresh rate | ≥3840Hz | ||
| Frame rate | ≥60Hz | ||
| Scanning method | 40S | 32S | 26S |
| Brightness | 200～600CD/㎡ | ||
| Grayscale | 12/14/16bit | ||
| Contrast | ≥10000:1 | ||
| Attenuation rate (after 3-year work) | ≤15% | ||
| Brightness adjustment | Auto/Manual: 0~100% | ||
| Computer operating system | WIN98/2000/WINXP/WinVista/WIN7 | ||
| MTBF | ≥20000H | ||
| Lifespan | ≥100000H | ||
| Failed rate | ≤1/100000 and no continuous failed pixels | ||
| Software | Professional LED display system programming software | ||
| Storage temperature | -35℃~+85℃ | ||
| Working temperature | -20℃~+60℃ | ||
| Working voltage (AC) | 220V±10%/50Hz or 110V±10%/60Hz | ||
| Average power consumption | ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²) | ||
| Maximum power consumption | ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²) | ||
| Installation cabinet | Die-cast aluminum cabinet | ||
| Brightness uniformity | ≥99% | ||
| Protection class | IP5X | ||
