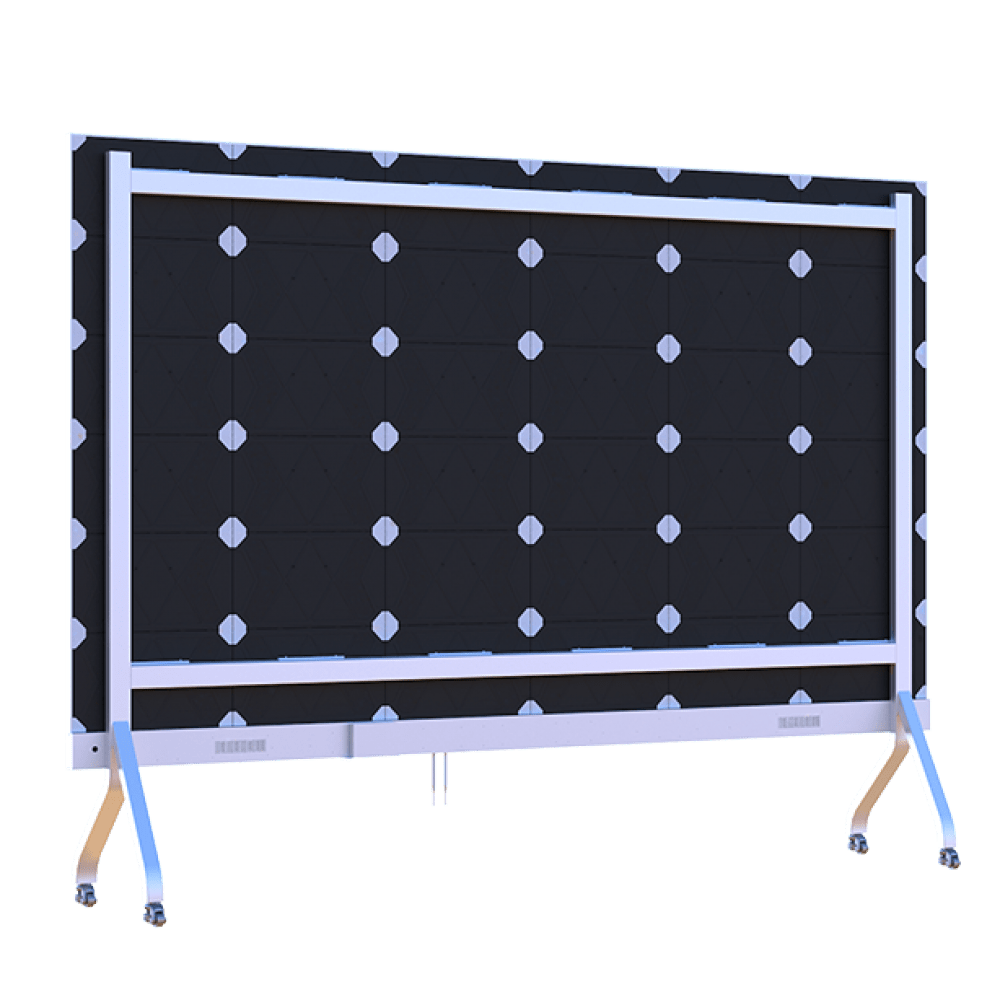

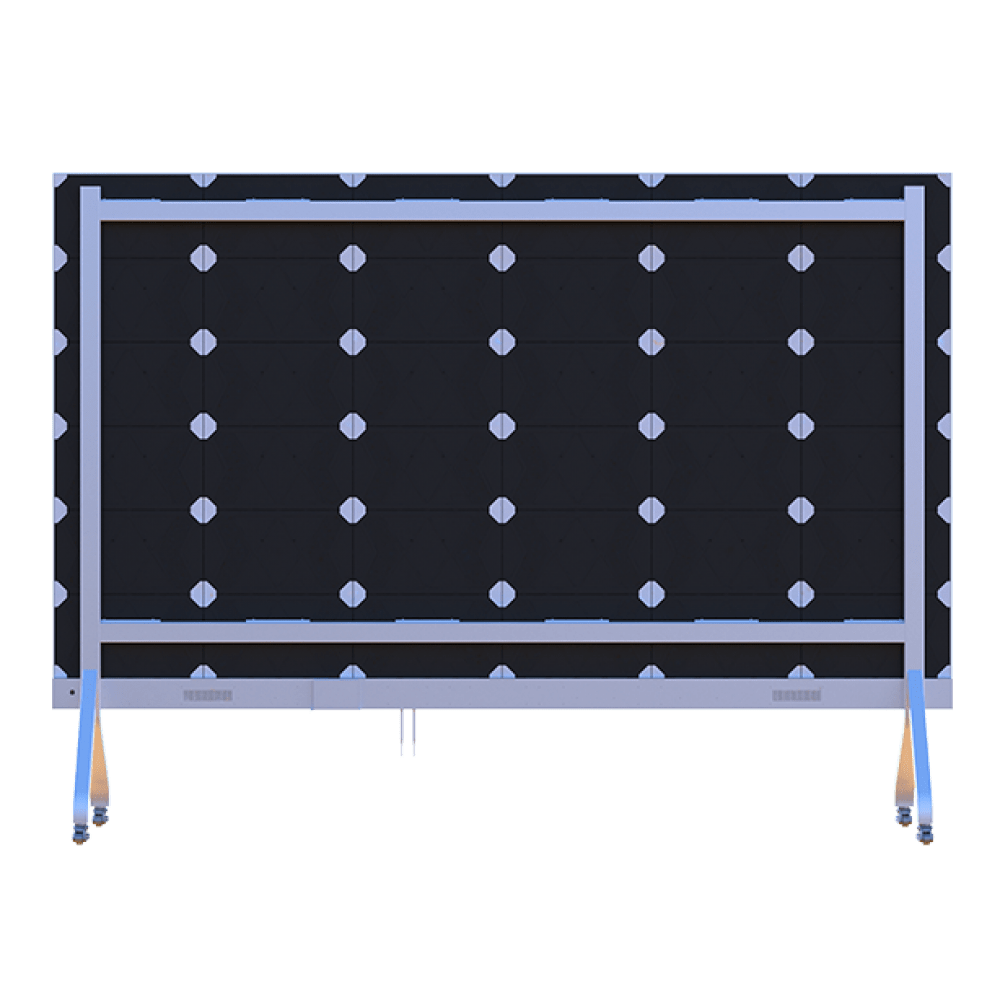

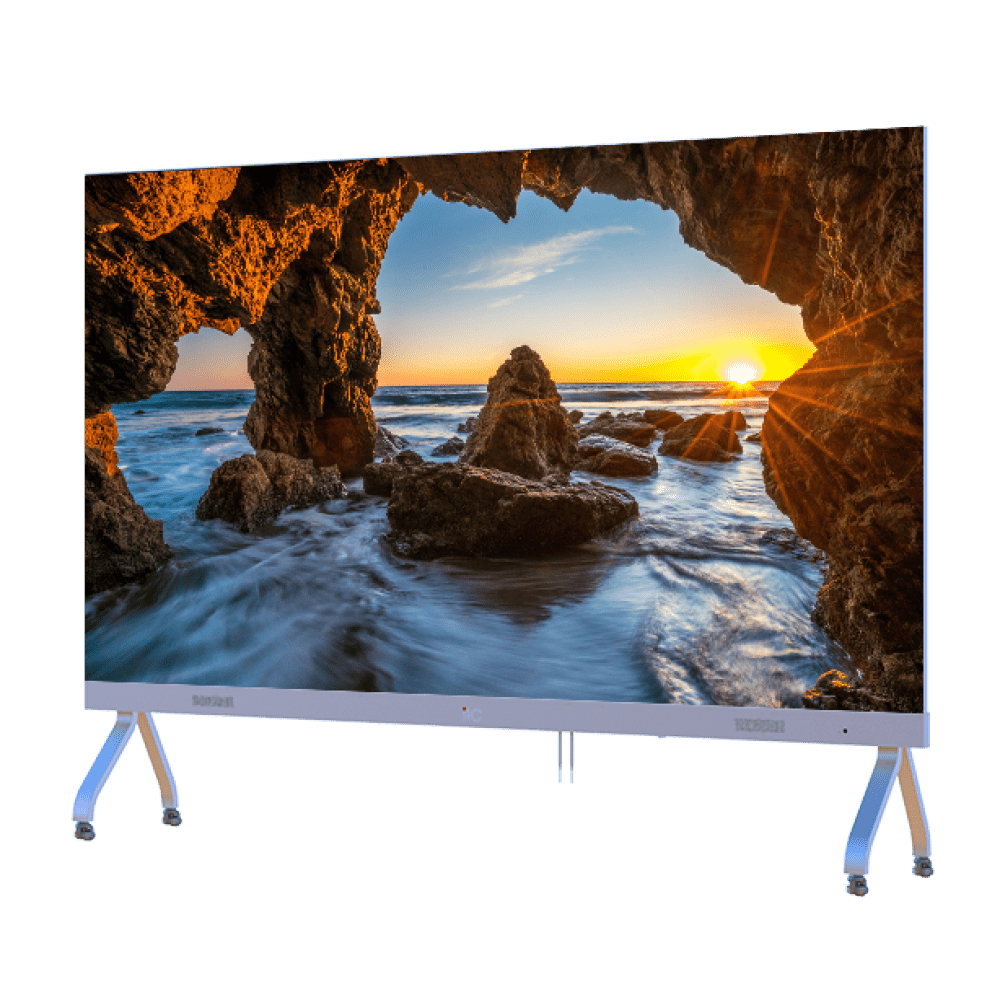

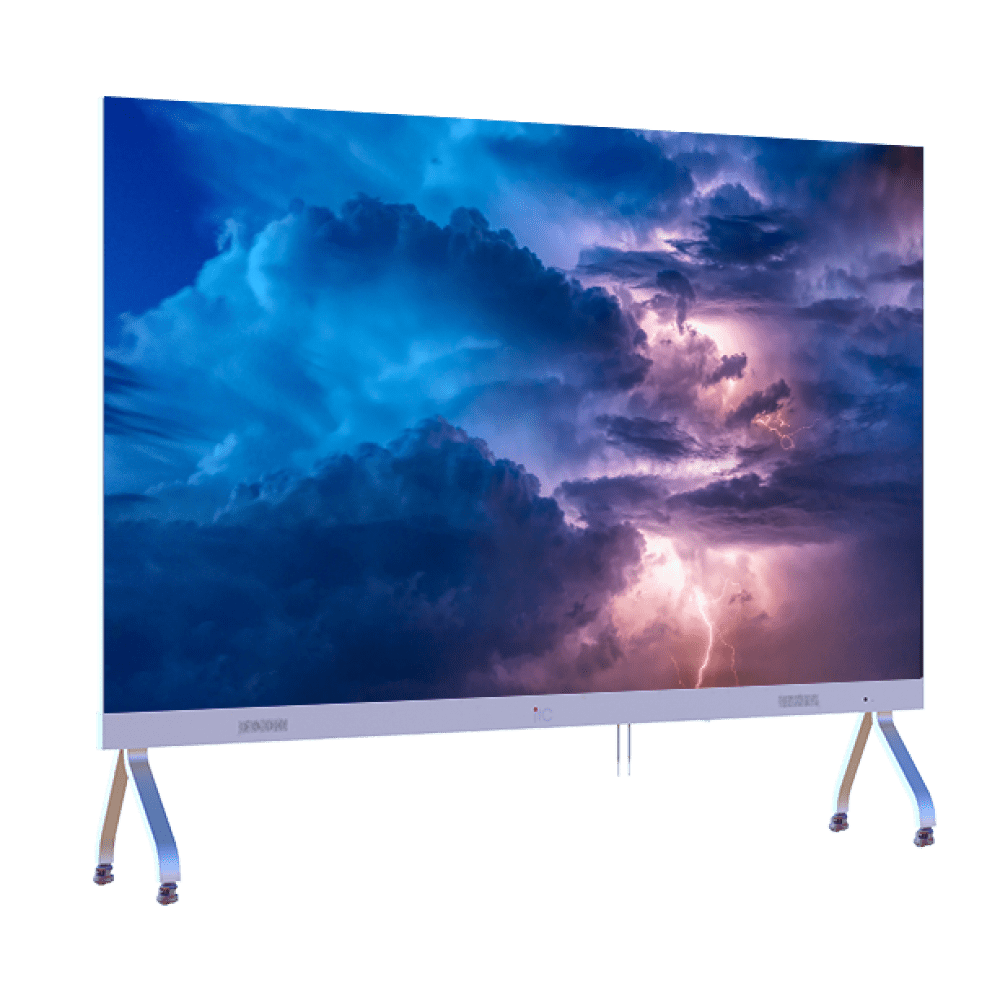

G series all-in-one LED display device adopts the split design of the screen and system, with highly integrated functions; it has the characteristics of long service lifespan, fast frame changing speed, high refresh rate, good uniformity, wide viewing angle, high grayscale, etc. It is widely used in lecture theatres, academic lecture halls, conference rooms in colleges and universities, and various display occasions.
The screen ratio of up to 99%
High dynamic range image HDR. Provide more dynamic range and image details, Compared with ordinary image.
You can see the horizontal/ vertical viewing angle ≥175°
Seamlessly spliced module, complete and clear picture, fast signal transmission.
As for conference room solution, LED display technology must deliver superior visual performance and clarity to enable efficient meeting.
With rapidly rising competition among offline retail industries, there’s never been a better time to think divergently to make your company stand out from the crowd by advertising. To help you convey an ultra-targeted brand message to a far broader public audience in a unique way.
As for the studio solution, our premium products bring your broadcasting stories to life by conveying vivid and dynamic visual performance to the audience.
Processor and storage device:
| System | Android 11 |
| CPU | 1.8G 64-bit quad-core processor |
| GPU | MaLi G52 |
| Storage memory | 32G |
| Running memory | 4G |
Specification:
| Display size | 110 inchs | 138 inchs | 165 inchs | 220 inches | ||||
| Display resolution | 1920×1080 | |||||||
| Display screen size | 2440mm*1372mm (W*H) | 3050mm*1715mm (W*H) | 3660mm*2058mm (W*H) | 4880mm*2774mm (W*H) | ||||
| Product size (with frame) | 2447mm*1379mm (W*H) | 3057mm*1722mm (W*H) | 3667mm*2065mm (W*H) | 4887mm*2751mm (W*H) | ||||
| LED encapsulation | SMD1010 black light | SMD1212 black light | SMD1515 black light | SMD2121 black light | ||||
| Pixel pitch | 1.27mm | 1.588mm | 1.906mm | 2.54mm | ||||
| Resolution | 619414 pixels/m² | 396424 pixels/m² | 275295 pixels/m² | 154853 points/m² | ||||
| Lamp bead/IC | NATIONSTAR copper wire/high fresh rate | |||||||
| Pixel configuration | 1R1G1B | 1R1G1B | 80*180 | 1R1G1B | ||||
| Module resolution | 240*135 | 192*108 | 152.5*343 | 60*135 | ||||
| Module size (mm) | 305*171.5 | 305*171.5 | 320*180 | 152.5*343 | ||||
| Cabinet resolution | 480*270 | 384*216 | 80*180 | 240*135 | ||||
| Cabinet size (mm) | 610*343 | |||||||
| Cabinet weight | ≤5.3Kg/pc | |||||||
| Working voltage | DC+4.2V | |||||||
| Best viewing distance | ≥3.8m | ≥4.7m | ≥5.7m | ≥7.62m | ||||
| Horizontal viewing angle | ≥175° | |||||||
| Vertical viewing angle | ≥175° | |||||||
| Maintenance method | Front maintenance | |||||||
| Drive device | Constant current drive | |||||||
| Refresh rate | ≥4200Hz | |||||||
| Frame rate | ≥60Hz | |||||||
| Scanning method | 60S | 64S | 45S | 45S | ||||
| Brightness | 0-800CD/m² | |||||||
| Grayscale | 12/14/16bit | |||||||
| Contrast | ≥10000:1 | |||||||
| Attenuation rate (after 3-year work) | ≤15% | |||||||
| Brightness adjustment method | 0~100% | |||||||
| MTBF | ≥20000H | |||||||
| Lifespan | ≥100000H | |||||||
| Failed rate | ≤1/100000 and no continuous failed pixels | |||||||
| Storage temperature | -35℃~+85℃ | |||||||
| Working temperature | -20℃~+60℃ | |||||||
| Working voltage (AC) | AC 90-270V 50Hz/60Hz | |||||||
| Average power consumption | ≤550W | ≤750W | ≤875W | ≤950W | ||||
| Maximum power consumption | ≤2200W | ≤3000W | ≤3500W | ≤3800W | ||||
| Cabinet material | Die-cast aluminum cabinet | |||||||
| Weight | 96kg (without mounting bracket) | 150Kg (without mounting bracket) | 212kg (without mounting bracket) | 366Kg (without mounting bracket) | ||||
| Brightness uniformity | ≥99% | |||||||
| Protection class | IP5X | |||||||
Device interface:
| Video interface | HDMI×1 (video input), HDMI×1 (LOOP output) |
| Audio port | Audio output interface × 1, SPDIF optical digital audio interface × 1 |
| Functional interface | USB 3.0×1, USB 2.0×1, RJ45 (gigabit Ethernet port), Type-C (private protocol), 4P aviation plug (private protocol, control switch screen) |
| Wireless interface | WIFI, Bluetooth, infrared |
| Central control serial port | RS232 interface x1 (RJ45 type, baud rate 115200bps) |
